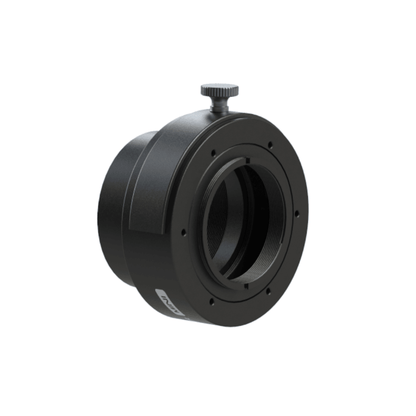

Player One Filter Drawer MINI (FD-MINI)

Player One Filter Drawer MINI

Stable Lock

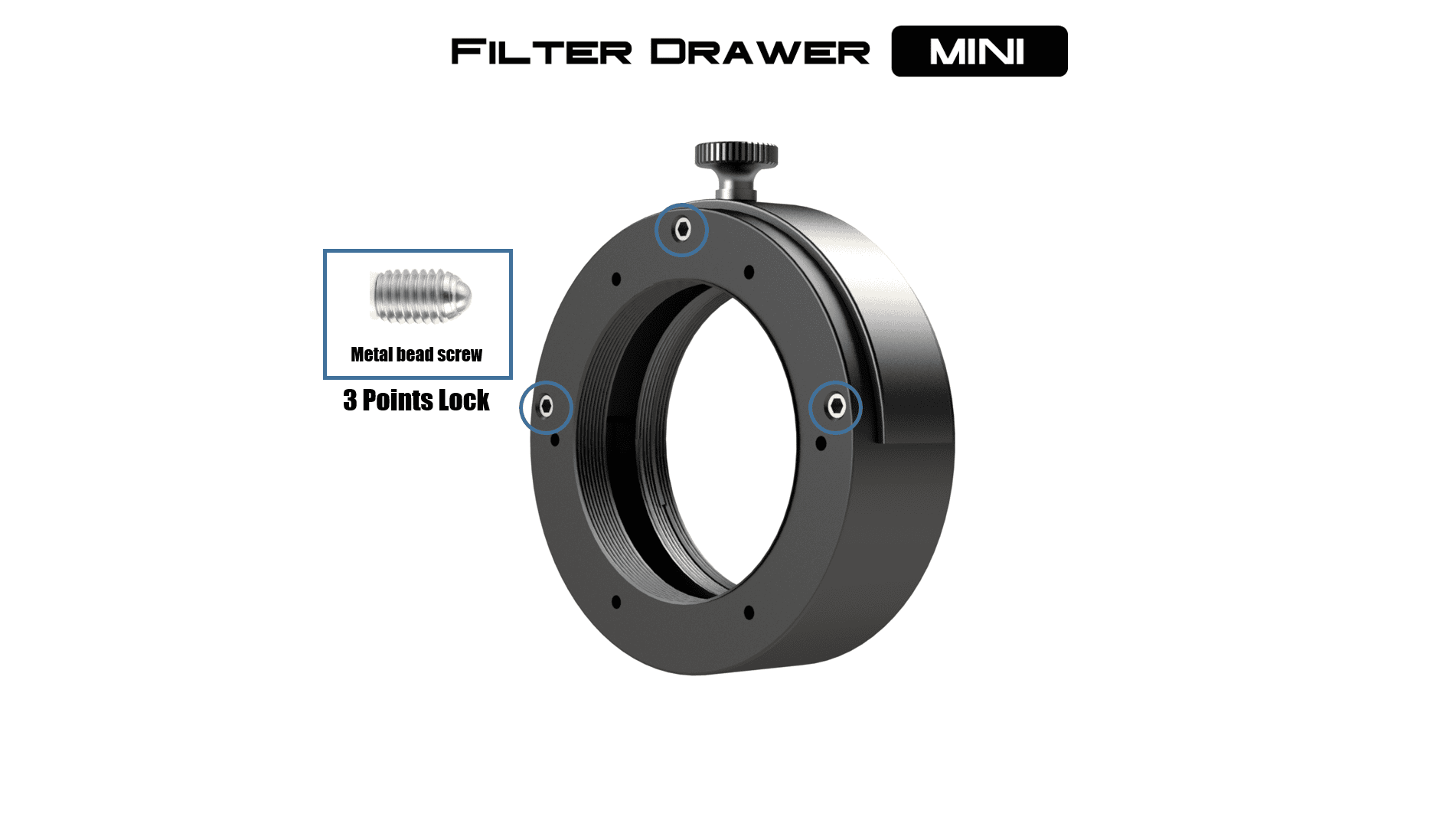

Filter Drawer MINI using metal bead screw to lock the drawer, 3 point lock can make sure the drawer is very stable in imaging.

Support filters

We know most users choose 2″ filter for drawers, even the camera only has 1″ format. But 2″ filters usually more expensive. So we provide 2 different drawer, 2″ and 1.25″.

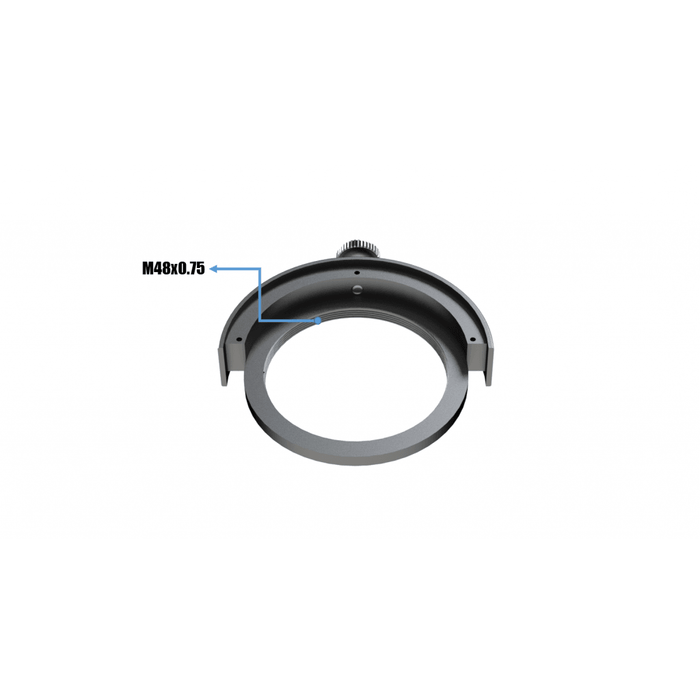

2″ drawer has M48*0.75 female thread, can hold a 2″ filter in it.

1.25″ drawer has M28.5*0.6 female thread, can hold a 1.25″ filter in it.

On both side of the Filter Drawer MINI, has 6 M2.5 screws holes. Screw holes on telescope side used to connect the FHD-OAG MINI, Screw holes on camera side used to connect cooled cameras.

Filter Drawer MINI also support threads connection, this will extend the using range of it.

Technical Specifications

2″ drawer has M48*0.75 female thread, can hold a 2″ filter in it.

1.25″ drawer has M28.5*0.6 female thread, can hold a 1.25″ filter in it.

In the Box

• Filter Drawer MINI (including a 2" Drawer)
• 1.25" extra Drawer
• M48M-M48F Extender 17.5mm
• M48M-M48M Adapter 2mm
• M48M-M42M Adapter 2mm
• M48M-M42F Adapter 0mm
• M2 Fexagonal Wrench
• Plastic Case x2

Manuals & Warranty

Player One 2-Year Warranty
