Warning & Safety Lighting

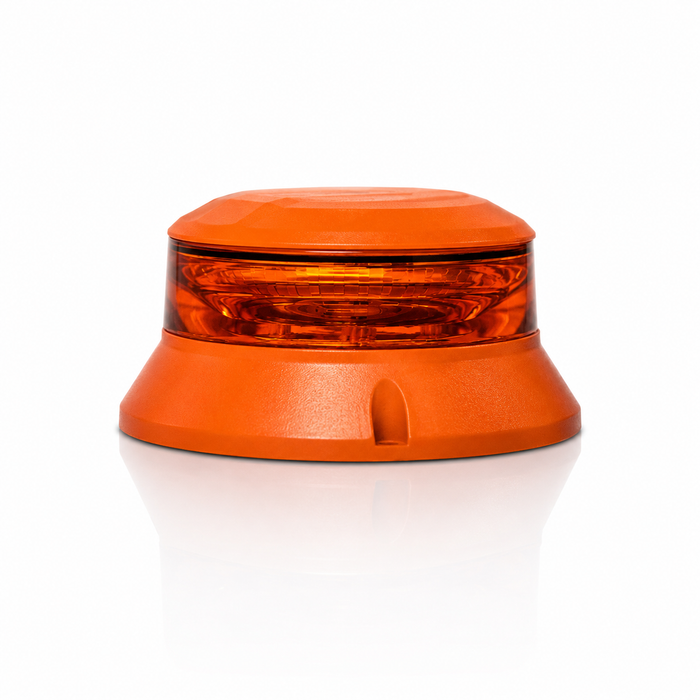

XDR-2 Beacon

A low-profile 36W LED beacon built for the harshest work environments. 24 high-output LEDs, 12 selectable flash patterns, and full ECE + SAE certification — sealed to IP69K and backed by a lifetime warranty.

Lifetime Warranty IP67 / IP69K ECE R65 · SAE J845 12 Flash Patterns
36WLED Output
IP69KSealed & Rated
12Flash Patterns
10–30VMulti-Voltage
Also available in a heavy-duty XDR-4 version →

Overview

Built for emergency, utility, and off-road work vehicles, the XDR-2 Beacon packs 24 individual 1.5W LEDs — 36W total — into a rugged, low-profile housing that stands just 2.15 in tall. Twelve selectable flash patterns and both synchronized and asynchronized modes let you run a single beacon or a coordinated array across a whole fleet.

A robust aluminium housing and UV-resistant polycarbonate lens shrug off impact, weather, and years of sun. Sealed to IP67 and IP69K, rated to withstand 60G of shock, and operating from -45°C to +65°C, it's certified to ECE R65, ECE R10, SAE J845, CE and CISPR 25. Runs on any 10–30V system and mounts with a simple bolt-down fixing.

Choose Your Setup

Option 1 · Base
Permanent

Hard-wired for a clean, permanent installation.

  • Open / bare-wire lead
  • Bolt-on mounting
  • Wires into your own switch & power source

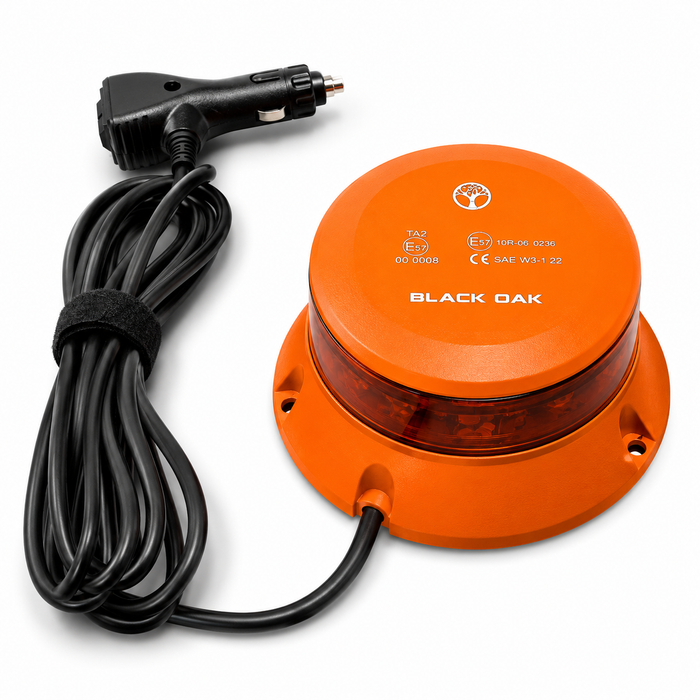

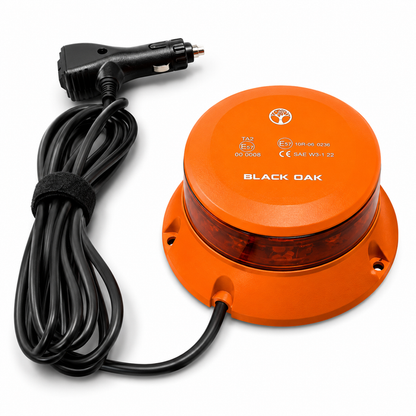

Option 2 · Plug & Play
Plug & Play

Ready to run out of the box — no hard-wiring needed.

  • 9.5 ft of wiring with a 12V cigarette-socket plug
  • Controls built into the back of the plug
  • Rocker 1 — power on / off
  • Rocker 2 — cycle through the 12 flash patterns

Details

Key Features
  • 36W total output from 24× 1.5W LEDs
  • 12 selectable flash patterns
  • Sync & async multi-beacon operation
  • Low-profile — only 2.15 in tall
  • IP67 & IP69K waterproof sealing
  • 60G anti-shock rating
  • Robust aluminium housing
  • UV-resistant PC lens
  • Amber or Clear lens options
  • 10–30V multi-voltage input
  • -45°C to +65°C operating range
  • Bolt-mount installation
What's in the Box

Permanent (Base)

  • 1×XDR-2 Low-Profile LED BeaconAmber or Clear lens
  • 1×Bolt-Mount Hardware KitFixed bolt-down mounting
  • 1×Open-Wire Lead (~16 in)Hard-wire into your own switch & power

Plug & Play

  • 1×XDR-2 Low-Profile LED BeaconAmber or Clear lens
  • 1×Bolt-Mount Hardware KitFixed bolt-down mounting
  • 1×9.5 ft Plug Harness12V cigarette-socket plug with built-in on/off + pattern-cycle rocker controls
Note: on the Permanent version, flash-pattern selection is set through the wiring; on the Plug & Play version it's handled by the rocker switches on the plug.
Full Specifications
Power 36W LED Chip
Light Source 24 × 1.5W LED
Voltage 10–30V
Flash Patterns 12
Synchronization Sync & Async available
Waterproof Rating IP67 / IP69K
Anti-Shock Rating 60G
Housing Material Robust Aluminium
Lens Material UV-Resistant PC
Lens Color Amber or Clear
Size 4.4 × 4.4 × 2.15 in
Mounting Bolt Mount
Cable ~16 in lead wire
Working Temperature -45°C ~ +65°C (-49°F ~ +149°F)
Warranty Lifetime
Certifications & Approvals

Independently tested and approved to the standards that matter for on-road and fleet use:

ECE R65 ECE R10 SAE J845 CE CISPR 25
Applications
Emergency Vehicles Tow & Recovery Construction Agriculture & Tractors Utility Fleets Snow Plows Forklifts Security Patrol
Warranty
Lifetime WarrantyCovers defects in workmanship and materials.
Built to Endure60G shock rated, IP69K sealed, -45°C to +65°C.
