XDR-4 Amber Warning LED Beacon
XDR-4 Beacon
A heavy-duty 72W LED beacon built to dominate the harshest work environments. 48 high-output LEDs, 12 selectable flash patterns, and full ECE R65 Class 2 + SAE J845 certification — sealed to IP69K and backed by a lifetime warranty.
Overview

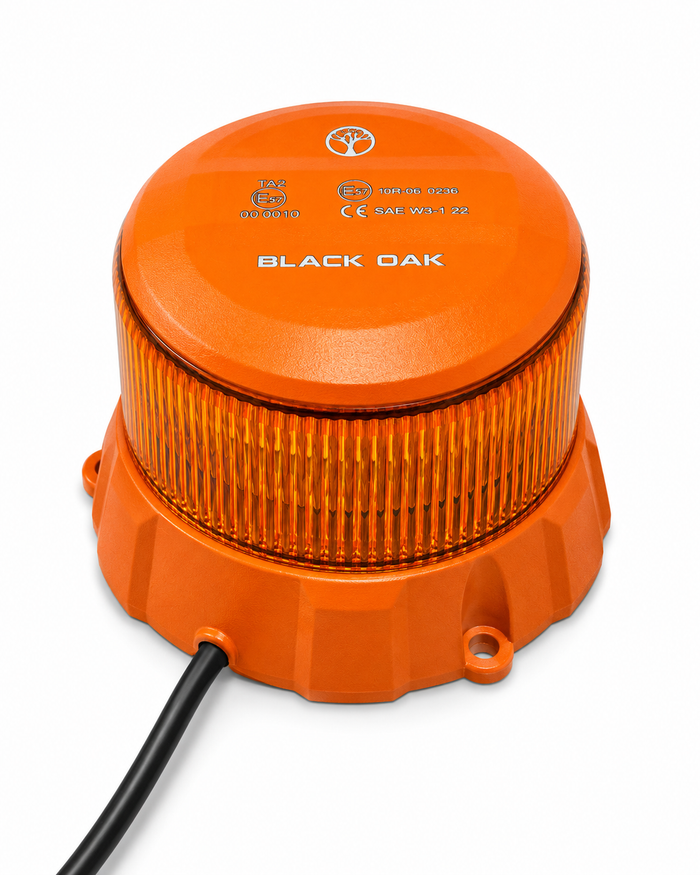

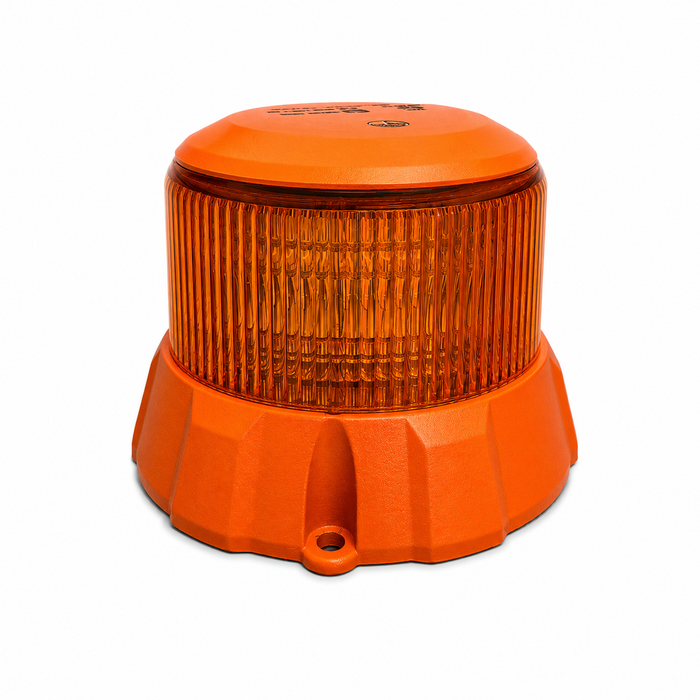

When you need maximum output and maximum presence, the XDR-4 Beacon delivers. Forty-eight high-output 1.5W LEDs — 72W total — pack into a rugged heavy-duty housing measuring 4.9 in across and 3.5 in tall, throwing a wall of amber warning light that cuts through daylight, dust, and weather. Twelve selectable flash patterns plus synchronized and asynchronized modes let you run a single beacon or a coordinated array across an entire fleet.
A robust aluminium housing and UV-resistant polycarbonate lens shrug off impact, weather, and years of sun. Sealed to IP67 and IP69K, rated to withstand 60G of shock, and operating from -45°C to +65°C, it's certified to ECE R65 Amber Class 2, ECE R10, SAE J845, CE and CISPR 25 Class 5. Runs on any 10–30V system and mounts with a simple bolt-down fixing.
Choose Your Setup
Hard-wired for a clean, permanent installation.
- Open / bare-wire lead
- Bolt-on mounting
- Wires into your own switch & power source

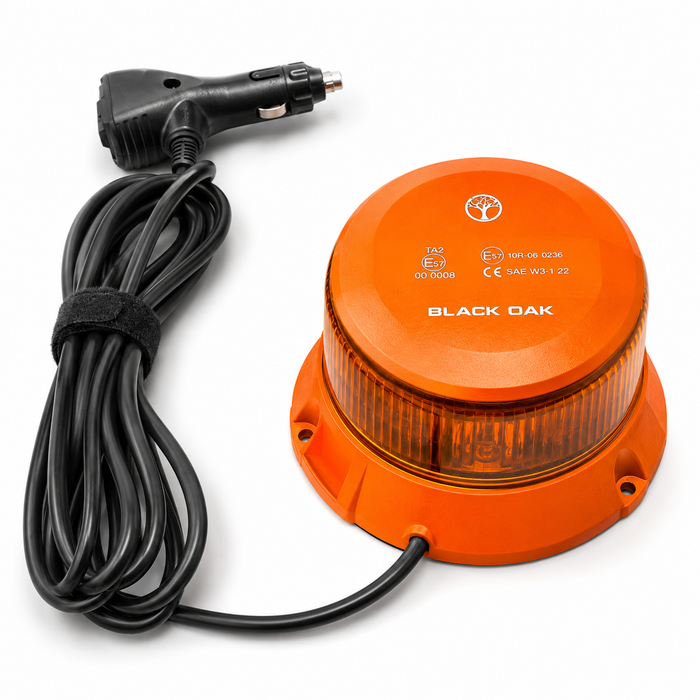

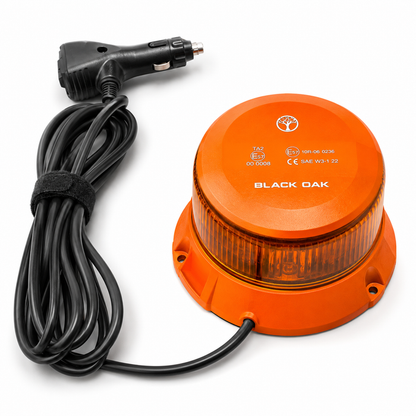

Tool-free — drop it on and move it between vehicles in seconds.
- Strong magnetic base — no drilling
- Cigarette-socket power lead
- Controls built into the plug
- Rocker 1 — power on / off
- Rocker 2 — cycle through the 12 flash patterns
Details
Key Features
- 72W total output from 48× 1.5W LEDs
- 12 selectable flash patterns
- Sync & async multi-beacon operation
- Heavy-duty aluminium build
- IP67 & IP69K waterproof sealing
- 60G anti-shock rating
- ECE R65 Amber Class 2 certified
- UV-resistant PC lens
- Amber or Clear lens options
- 10–30V multi-voltage input
- -45°C to +65°C operating range
- Bolt-mount installation
What's in the Box
Permanent (Base)
- 1×XDR-4 Heavy-Duty LED BeaconAmber or Clear lens
- 1×Bolt-Mount Hardware KitFixed bolt-down mounting
- 1×Open-Wire Lead (~16 in)Hard-wire into your own switch & power
Magnetic Mount
- 1×XDR-4 Heavy-Duty LED BeaconAmber or Clear lens
- 1×Magnetic Mount BaseStrong, tool-free hold — no drilling
- 1×Cigarette-Socket Power LeadBuilt-in on/off + pattern-cycle rocker controls
Full Specifications
| Power | 72W (48 × 1.5W LED) |
| Light Source | 48 × 1.5W LED |
| Voltage | 10–30V |
| Flash Patterns | 12 |
| Synchronization | Sync & Async available |
| Waterproof Rating | IP67 / IP69K |
| Anti-Shock Rating | 60G |
| Housing Material | Robust Aluminium |
| Lens Material | UV-Resistant PC |
| Lens Color | Amber or Clear |
| Size | 4.9 × 4.9 × 3.5 in |
| Mounting | Bolt Mount / Magnetic |
| Cable | ~16 in lead wire |
| Working Temperature | -45°C ~ +65°C (-49°F ~ +149°F) |
| Warranty | Lifetime |
Certifications & Approvals
Independently tested and approved to the standards that matter for on-road and fleet use:
